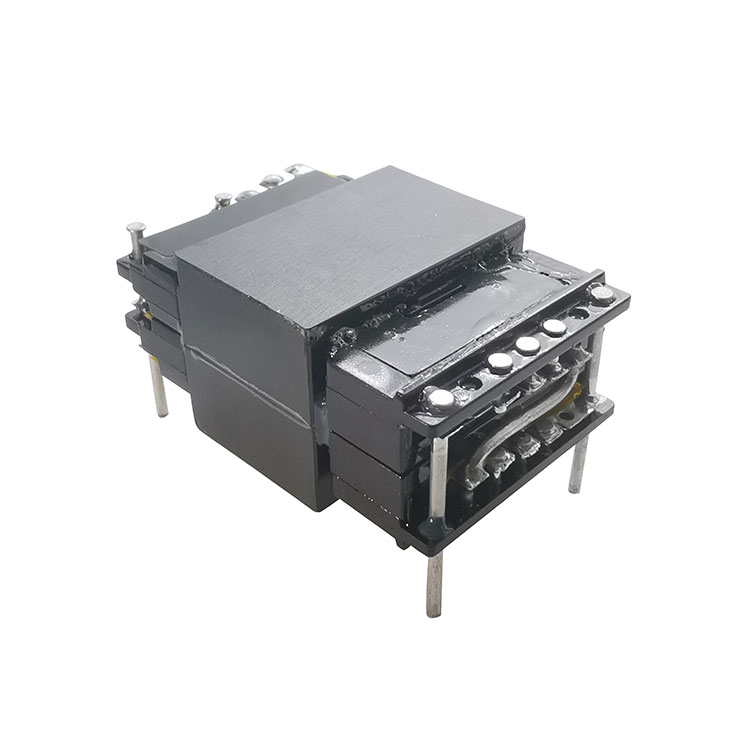

EV Kargatze Transformadorea

OCL:

Pin 1-7= 1,45 mH Min. @100KHz/1V

LK:

Pin 1-7 (laburra 8-11.11-14)= 10.5uH Max 100KHz 1V

Pin 1-7 (laburra 8-14)= 7.2uH Max 100KHz 1V

Bira-erlazioa:

28:6:6 ±%3. @20KHz/1.0V

DCR:

1-7: 68mΩ Max.

8-14: 8mΩ Max.

Hi-POT:

N1-N2: 3750V AC/3mA/ 60S.

N1-CORE: 3750V AC/3mA/ 60S.

N2/N3--CORE: 500V AC/3mA/ 60S.

IR:

N1-N2: 100MΩ Min DC500V

BOBINA-CORE: 100MΩ Gutxieneko DC500V
